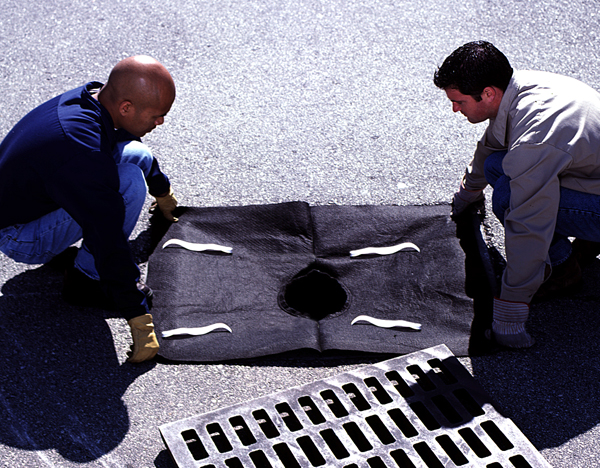

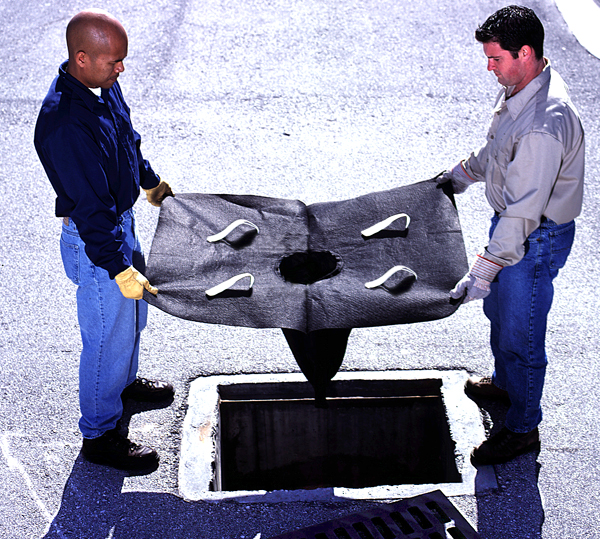

Keep Sediment And Other Pollutants From Entering The Water System With Ultra Drain Guard Catch Basin Inserts

• Stormwater pollution has become a major concern both locally and on a national level. Ultra-Drain Guards remove waste from stormwater before it can become a problem in the water system.
• Exceeds 80% sediment removal efficiency
• Helps comply with NPDES, 40 CFR 122.26 (1999) when used as Best Management Practice in Storm Water Pollution Prevention Plans.
• Designed for practical use in:
  • Industrial Facilities - keep oil and other contaminants from entering storm drains.
  • Construction Sites - capture eroded soil and wind-blown debris.
  • Parking Lots, "Drive-Up" Retail Facilities - selected geotextiles collect oil, fuel and other contaminants that drip from cars.
• Oil & Sediment Model (Part # 9217/9356) — removes up to .87 gallons of hydrocarbons as well as dirt, sand and other contaminants.
• Oil & Sediment Plus Model (Part # 9219/9358) — the addition of Ultra-X-Tex filter strips increases oil and grease absorption by .51 gallons, offering a total capacity of 1.38 gallons of hydrocarbon removal.
• Trash & Debris Model (Part # 9227) —designed specifically to catch larger items and floatables like leaves, cigarette butts and paper goods.

Product Instructions

Specifications

Oil & Sediment Model: 48" x 36"

Dimensions: 48" L x 36" W x 18" H (1220 mm x 915 mm x 458 mm)

Performance: Oil- Up to 0.87 gallons (3.5 L), Sediment: Up to 40 lbs (18 kg)

The total water flow rate through the insert in new condition is in excess of 500 gpm. The bypass rate is approximately 700 gpm.

Oil & Sediment Plus Model: 48" x 36"

Dimensions: 48" L x 36" W x 18" H (1220 mm x 915 mm x 458 mm)

Performance: Oil- Up to 1.38 gallons (5 L), Sediment: Up to 40 lbs (18 kg)

The total water flow rate through the insert in new condition is in excess of 500 gpm. The bypass rate is approximately 700 gpm.

Oil & Sediment Model: 60" x 60"

Dimension: 60" L x 60" W x 18" H (1524 mm x 1524 mm x 458 mm)

Weight: 2 lbs (1 kg)

Performance: Oil- Up to 1.55 gallons (5.9 L), Sediment: Up to 40 lbs (18 kg)

The total water flow rate through the insert in new condition is in excess of 900 gpm. The bypass rate is approximately 700 gpm.

Oil & Sediment Plus Model: 60" x 60"

Dimension: 60" L x 60" W x 18" H (1524 mm x 1524 mm x 458 mm)

Weight: 3 lbs (1.5 kg)

Performance: Oil- Up to 2.06 gallons (7.8 L), Sediment: Up to 40 lbs (18 kg)

The total water flow rate through the insert in new condition is in excess of 900 gpm. The bypass rate is approximately 700 gpm.

Trash & Debris Model

Dimensions: 48" L x 36" W x 18" H (1220 mm x 915 mm x 458)

Weight: 1 lb (1/2 kg)

Performance: 1 cu. ft. (28 L) - before reaching bypass ports
