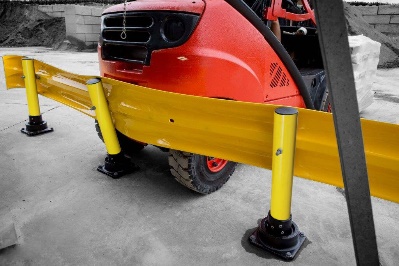

Modular Guardrail Sections with SlowStop Bollards

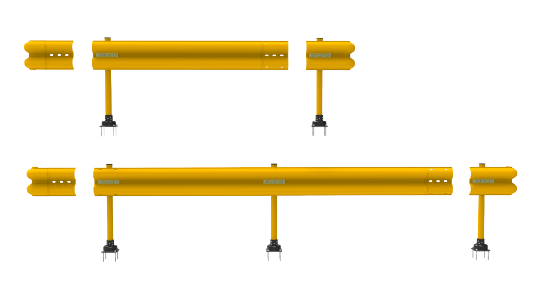

Our FlexRail Polycarbonate Guardrail system now comes in pre-configured modules which allows for easy specifying and ordering. Attach an end section to as many 4 meter or 2 meter sections as needed to complete the strongest flexible railing system on the market. Sections can be easily field cut for more precise lengths or call us for an engineering solution. Double railing systems are available (with mid rails).

A single section of guardrail withstands up to an incredible 24,780 pounds / 110 kN of force (90˚ impact) without any permanent deflections all while returning to its original shape impact after impact. Double up railings for even more stopping power.

Comes complete with 3’, 4”, 5” or 6” SlowStop® bollards and all hardware necessary for easy install.SlowStop® bollards ensure that post impacts will not damage you flooring.Product comes with a limited two-year warranty.

Specifications:

Color: RAL 1023 Traffic Yellow

Diameter: 2.88", 4.00", 5.56", 6.63"

Overall Height: 42"

Product Weight: Varies

Energy Absorption: 23,700-35,391 Joules @ 90º Rail Impacts

Temperature Rating: -40°F

Pipe Coating: 60μm Hot Dipped Galvanized + 60μm Polyester Outdoor Powder Coat

Cast Iron Coating: Environmentally Friendly Water-Based Electrocoat + Powder Coat

Set Screws: -

Anchor Screws: 5/8"

Cap: Black
