Portable Delineators

Delineators

Portable Delineators, two pieces with T top, Ring top, or Open top handles

  • Fast set up and installation.
  • Available with any grade of reflective sheeting.
  • Fluorescent Orange color is standard. Other colors are available by custom order. Please consult with the factory for other color choices.
  • 100% recycled rubber base in various weights

Ring top Delineators

Features:

  • Large opening for easy handling.
  • Has a caution tape knob for wrap around application.
  • Reinforced bolt hole for warning lights.
  • Support rings around reflective bands for added tape protection.
  • Made from high impact polyethylene utilizing polymer protection UV stabilizer.

Specifications:

Base Color: Black
Base Dimensions: 16" Octagonal, 1.75”, 1.65" & 1.375" height
Base Material: 100% post-consumer recycled rubber
Base Weight: 8, 10, 12, 15, and 18 pounds
Colors: Fluorescent Orange or White
Height of Sheeting Above Roadway: 37.50" & 40.75"
Height: 44.75 and 48.50"
Post Diameter: Round: 4.00"
Post Material: HDPE with polymer protection UV stabilizer
Post Sheeting: Many options available
Recycled Content: 90% overall

T-Top Delineators

 Features:

  • "Easy to Grab" T-Grip top handle.
  • Tube material is 95% Post-Consumer Recycled Content high impact polyethylene utilizing polymer protection UV stabilizer.
  • Support rings around reflective bands for added tape protection.
  • All sheeting meets ASTM 4956 requirements.
  • The TD5100T T-Grip Delineator is available in Fluorescent Orange with other colors available upon request. Please contact the factory.
  • Meets EPA Guidelines for Recycled Content.
  • Available with 100% Post-Consumer Recycled Rubber Bases in an extensive selection of weights. See Specifications.

Specifications:

Base Dimensions: 16" Octagonal, 1.75”, 1.65" & 1.375" height
Base Material: 100% post-consumer recycled rubber
Base Weight: 8, 10, 12, 15, and 18 pounds
Base Color: Black
Diameter: 4
Height: 48
Height of Sheeting Above Roadway: 42
Material: 95% Post-Consumer Recycled Content HD Polyethylene that is Dioxin-Free.
Post Color: Standard color: Fluorescent Orange. Others upon request.
Recycled Content: Tube is 95% Post-Consumer; Rubber Bases are 100% Post-Consumer Recycled Content.
Reflective Sheeting: Many grades available.
Width: Tube bottom is 6.500.


Open Top Delineators

Features:

  • Manufactured from 100% Post-Consumer Recycled Plastic in a specially formulated plastic compound utilizing polymer protection UV stabilizer.

  • Fast set up and installation.

  • Available with any grade of reflective sheeting.

  • Fluorescent Orange color is standard. Other colors available by custom order. Please consult with the factory for other color choices.

Specifications:

Base Color: Black
Base Dimensions: 1.375" to 2.750" height and 16.00" diameter
Base Material: 100% post-consumer recycled rubber
Base Weight: 8, 10, 12, 15, and 18 pounds
Post Color: Fluorescent Orange.
Post Diameter: Round: 4.00"
Post Dimensions: Flattened, Length, etc.: Available in 18, 28, 36, 39, or 42-inch heights
Post Material: HDPE with polymer protection UV stabilizer
Reflective Sheeting: Many options upon request

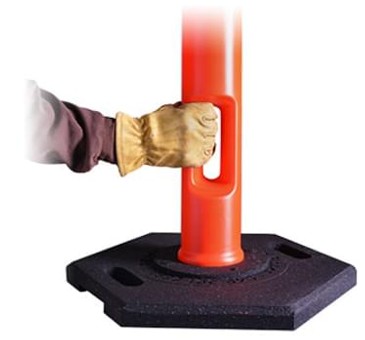

Grabber-Tube II Portable Delineator

The stem of the Grabber-Tube II is made of flexible yet durable fluorescent low density polyethylene material, with UV inhibitors to minimize fading. The recessed areas on the stem protect the reflective bands, minimizing rips and scratches. The extra-large flange at the bottom of the stem allows the rubber base to hold it firmly in place.

Grabber Handle

The new and improved Grabber Handle fits your hand better than the original Grabber-Tube handle and makes movement and placement a breeze!
Three (3) recessed sheeting areas protect the reflective sheeting bands from tearing and scratching while on the job site.

Grabber Stem Hole

The all new "Grabber Hole" in the stem provides a convenient carrying handle for movement and deployment, even off the bed of a work truck.

The extra-large bottom flange on the Grabber-Tube II stem holds the base and tube firmly in place with no pull through.

Features

  • Bright red orange color molded throughout
  • UV inhibitors to minimize fading
  • Grabber Handle fits your hand better and makes movement and placement a breeze
  • Bases will not crush when run over
  • Meets Federal MUTCD standards
  • Extra Large bottom flange on Grabber II stem holds the base and tube firmly in place with no pull through
  • Available with various sizes and types of reflective sheeting
  • Three (3) recessed sheeting areas to help protect the reflective bands from tearing and scratching
  • Grabber Hole in the stem provides convenient carrying handles for movement and deployment, even off the bed of a work truck
