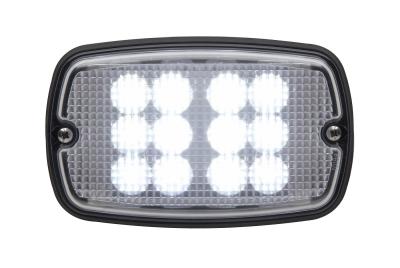

The only Patented Linear-LED® lightheads with a bold look to the future in fire, ambulance and rescue truck emergency lighting. Designed to stand-up to the harsh environments and standards of the industry while providing top of the line performance!

FEATURES

• Surface mounted via two screws.
• Super-LEDs provide unmatched high intensity warning, low current consumption.
• Unique lens shape is completely illuminated with patented Linear-LED® designed reflector assembly, unlike older designs that may have “dead spots” or “hot spots”.
• Lens and reflector are a sealed assembly.
• Lighthead is designed with the mounting screws located outside of the sealed lens/reflector assembly, eliminating water infiltration.
• Replaceable light engine is accessed from the rear of the lens/reflector assembly.
• Built-on rear gasket insures that the lighthead and optional flange does not touch the vehicle’s surface, preventing contact.
• Updated design allows for faster and easier installation.
• M6 lightheads have multiple Scan-Lock™ flash patterns available. Choose from Solid, Left/Right, Top/Bottom, In/Out, or Diagonal sequencing. Meets KKK 1822F, NFPA 1901, SAE and EC65 specifications. Many flash patterns meet California Title XIII.
• Hard coating on lenses resist scratches, chemical and corrosive damage.
• M6 available in a Brake/Tail/Turn, Back-Up, Scenelight or Turnlight.
• Other patents pending.
• Available in Single or Split Colors.
• Optional Black or Chrome flange available.

Super-LED® Scenelights Feature

SPECIFICATIONS

• 6-3/4" Long X 4-5/16" High, Protrudes 1-3/8"
• Current Draw @ 12.8 VDC in "Solid" mode: 2.25 amps peak, 0.9 amps average

M6 Super-LED Scenelights SPECIFICATIONS

• 6-3/8" Long x 4" High, Protrudes 1-1/2"
• No high voltage.
• Super-LEDs are instant “On”, no warm-up or high current voltage spikes on start up.
