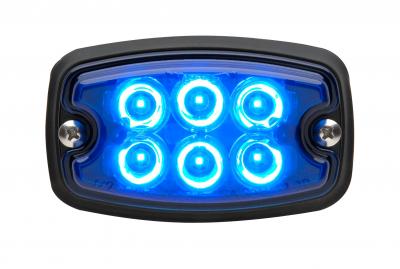

M2 Series Super-LED® Surface Mount
The only patented Linear-LED ® lightheads designed to stand-up to the harsh environments and standards of the industry while providing top of the line performance!
Features
- Surface mounted via two screws.
- Updated design allows for faster and easier installation.
- Super-LEDs provide unmatched high intensity warning, low current consumption.
- Unique lens shape is completely illuminated with patented Linear-LED designed reflector assembly.
- Lens and reflector are a sealed assembly.
- Lighthead is designed with mounting screws located outside of the sealed lens/reflector assembly, eliminating water infiltration.
- Rear gasket insures that the lighthead and optional flange do not make contact with the vehicle’s surface.
- Multiple Scan-Lock™ flash patterns available with many being California Title XIII compliant. Meets KKK 1822F, NFPA 1901, SAE and EC65 specifications.
- Available in single or split colors.
- Choose patterns from solid, left/right, top/bottom, in/out, or diagonal sequencing.
| MODEL | DESCRIPTION | |||
|---|---|---|---|---|
| M2* | Warning, Red, Blue, Amber or White | |||
| M2*C | Warning, Red, Blue or Amber with Clear Lens | |||
| M2# | Warning, Split Color with Clear Lens, Red/Amber and Red/Blue Only | |||
| M2D | Warning, Split Color with Clear Lens, Red/White | |||
| M2FC | Flange, Chrome | |||
| M2FB | Flange, Black | |||
| M2GROM | Grommet Mount Kit | |||
| M2PEDB | Pedestal Mount Kit, Black | |||
| M2PEDC | Pedestal Mount Kit, Chrome | |||
Replace " * " symbol in model number with letter indicating lens color or LED color desired: A = Amber; B = Blue; C = Clear/White; R = Red; G = Green
Replace " # " symbol in model number with letter indicating SPLIT lens or LED color desired: D = Red/Clear; E = Blue/Clear; F = Amber/Clear; H = Green/Clear J = Red/Blue; K = Red/Amber; L = Red/Green; M = Blue/Amber
