AlertTile Detectable Warning
AlertTile is a semi-rigid surface applied detectable warning mat. It is glass reinforced thermoset composite engineered for impact resistance, slip resistance, wear resistance, and long term durability.
Features
- Semi-rigid composition- 30,000 psi strength, flexible enough to conform to ramp irregularities
- Premium UV Treatment- long term color retention
- Anchor System- premium adhesive and HILTI HUD-1 anchors with stainless steel screws
- Perimeter Beveled Edges- safe pedestrian transition
- Uses patented Penetrator anchors for cast-in-place applications
- In-line domes spaced on exact 2.35" centers (ADA 4.29.2)
Colors
- Safety Yellow
- Colonial Red
- Brick Red
- Black
- Gray
Sizes
- 2' x 3'
- 2' x 4'
- 2' x 5'
AlertTile Detectable Warning Specification Sheet
Wear ResistanceASTM C 50138 gram or 0.0107"
| Property | ASTM Standard | Result |
|---|---|---|
| Slip Resistance | C 1028 | Dry .93 / Wet .76 |
| Impact Resistance | D 256 | 8.0 Izod ft-ibs / in (notch) |
| Adhesion Bond Strength | C 482 | 152 psi |
| UV Resistance - Fade | Cap Y (LVR) | Brick Red 5-15 Safety Yellow 25-50 |
| Water Absorption | 0.3 - 0.6% | |
| Compression Strength | D 695 | 30,000 psi |
| Flexural Strength | D 790 | 18,000 psi |
| Tensile Strength 1/8" | D 638 | 9,000 psi |
| Color | Integral Throughout Product | Yes |

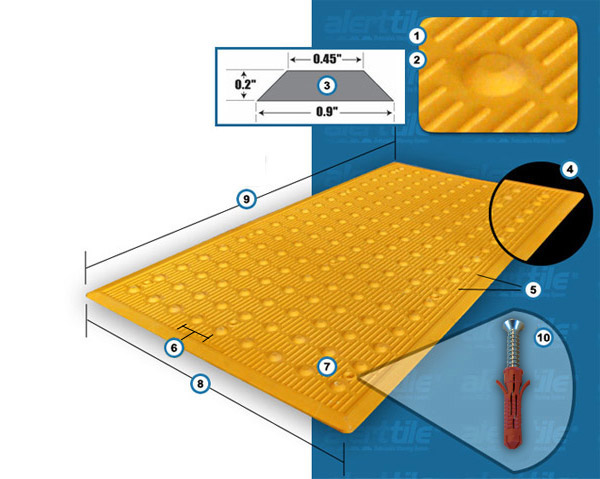

| Dome Height | 0.2" | Yes |
| Dome Base Width | 0.9" | Yes |
| Dome Top Diameter | 0.45" | Yes |
| Dome Spacing | 2.35" | Center-to-Center |
| UL Flammability | UL 94 V-0 | 94V-0@3/32" |
| Flame Resistance Seconds Ignintion Time Gurning Time | D-229 | 120 65 |
| Flame Spread Index, 1/4" | E84 | ‹25 |
| Freeze-Thaw Durability | C 1262-08 | Pass |
*Engineers and Architects- contact us for CAD drawings and other specifications
